4 minutes -2 inch welding pipe galvanizing machine

◎ Applicable steel pipe: 4 minutes -2 inches, 30-50 square
◎ Galvanizing speed: 9 sets/min

Free design drawings, can undertake turnkey projects

+86-0316-7210054

Online consultation

4 minutes -2 inch welding pipe galvanizing machine introduction

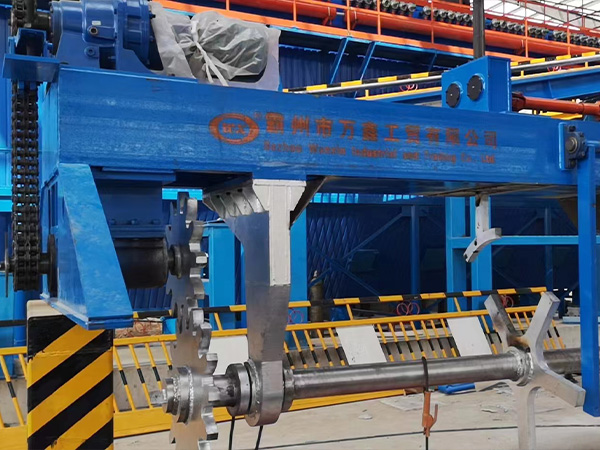

Steel pipe hot dip galvanizing production line is a production equipment that automatically dipped the finished black pipe after surface treatment and plated a layer of corrosion-resistant and smooth zinc layer on the inner and outer surface of the steel pipe. The main equipment of the production line includes drying furnace, heating furnace, galvanizing machine, steel pipe extraction machine, drawing mechanism, drawing roller, translation mechanism, steam and air combination blowing machine (or guide rod blowing machine), leveling mechanism, cooling water tank, spray roller, typing roller, blue belt machine, electrical parts, etc. Wanxin company production of hot-dip galvanized production line specifications between 0.5-10 inches.

Applicable steel pipe: 4 minutes -2 inches, 30-50 square
Galvanizing speed: 9 sets/min

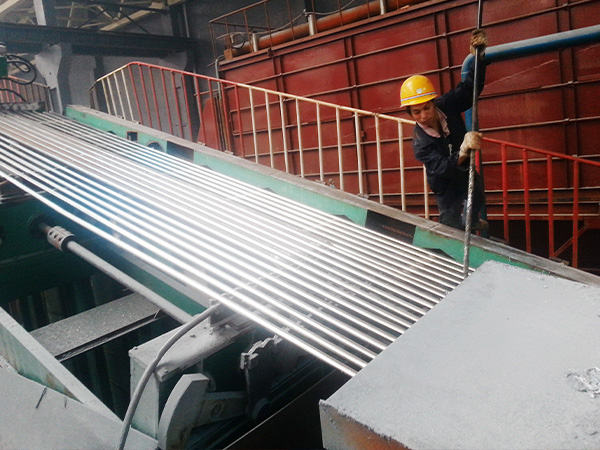

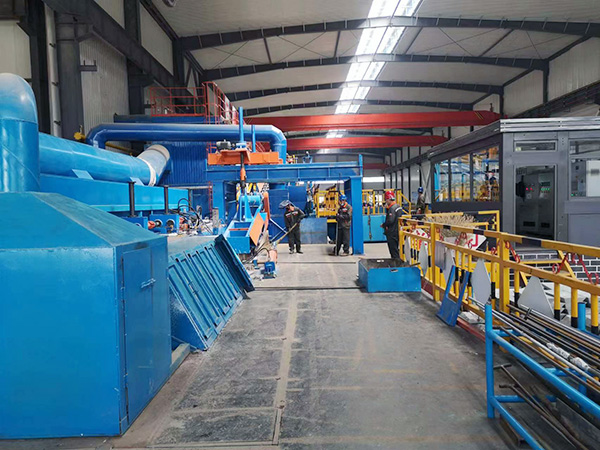

Welding pipe galvanizing machine
Welding pipe galvanizing machine
Welding pipe galvanizing machine
Welding pipe galvanizing machine
Welding pipe galvanizing machine
Welding pipe galvanizing machine

4 minutes -2 inch welding pipe galvanized machine equipment

Number	Device name	Number	Device name
1	Drying oven heating body	2	Oven drive
3	Pan transfer mechanism	4	Galvanizing machine
5	Magnetic roll extraction	6	Bring up the roller table
7	Pull up, blow in, move the column horizontally	8	Traverse mechanism
9	Guide rod internal blowing mechanism	10	Electric levelling
11	Cooling tank	12	Roller loading chain mechanism
13	Discharge roller traversing	14	Discharge roller table
15	Roller table passivation device	16	Electric control section
17	Wrapping machine

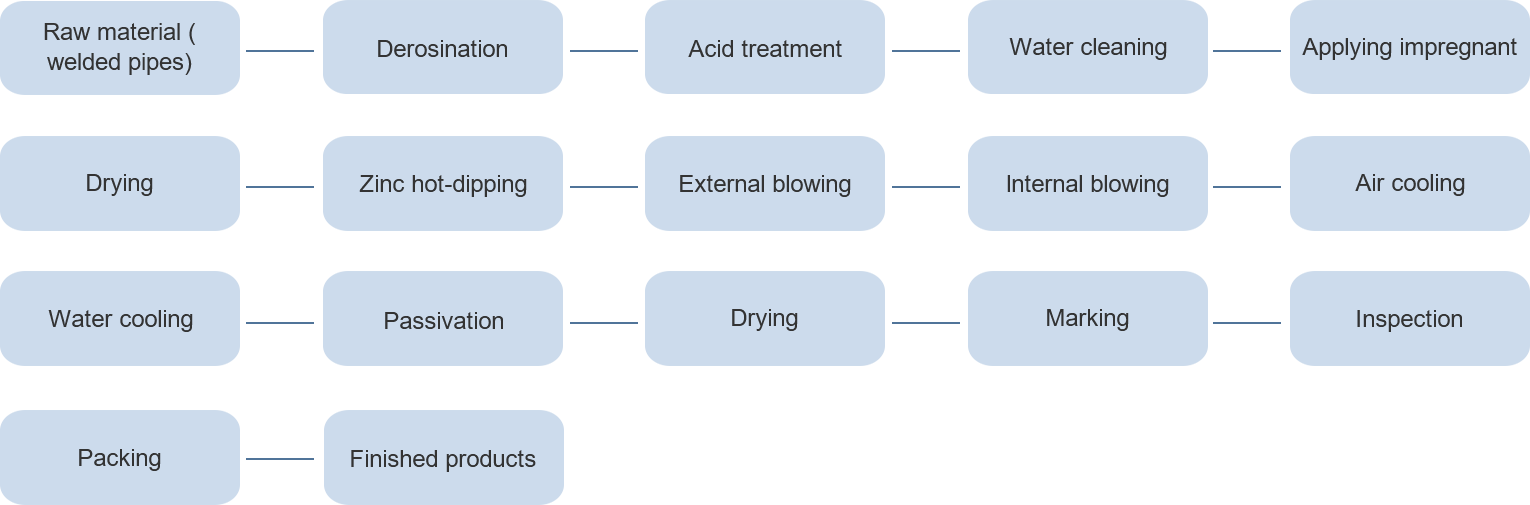

4 minutes -2 inch welding pipe galvanizing machine process flow

4 minutes -2 inch welding pipe galvanizing machine technical parameter

Item#	Pipe Sizes(inch)	Production mode	Internal blowing form	Thickness mm(in)	Pipe Length m(ft)	Production speed m/min(ft/min)	Equipment area m²(ft²)	Plant area m(ft)
1	1/2-2	Four work-line	Guide rod	1.8-3.2	6	36-42	1300	40X110
1	1/2-2	Four work-line	Guide rod	0.071”-0.126”	20	118-138	13993	131X361
2	1/2-4	Three work-line	Guide rod	1.8-3.75	6	30-42	1300	40X110
2	1/2-4	Three work-line	Guide rod	0.071”-0.148”	20	98-138	13993	131X361
3	4-6	Double work-line	Guide rod	3.25-6	6/9/12	12-30	1900	55X110
3	4-6	Double work-line	Guide rod	0.128”-0.236”	20/30/40	40-98	2045	180X361
4	6-10	Single work-line	Guide rod	5.0-8.0	6/9/12	6-12	1900	55X110
4	6-10	Single work-line	Guide rod	0.197”-0.315”	20/30/40	20-40	2045	180X361

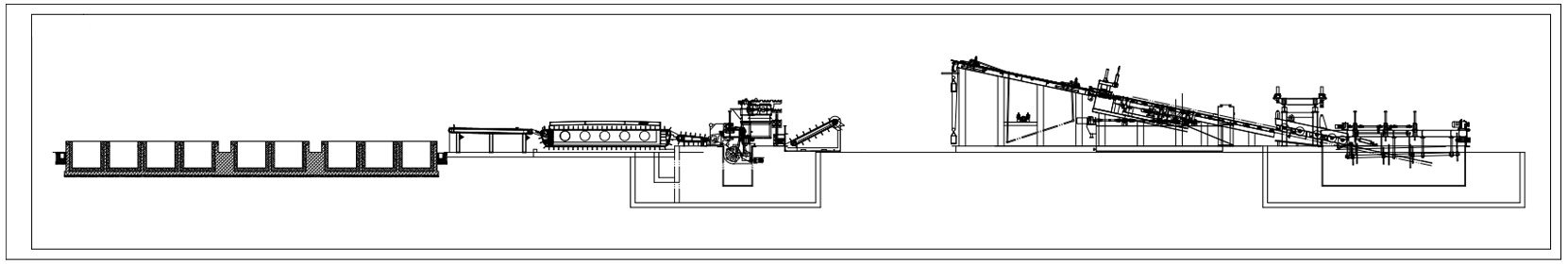

4-minute - 2-inch welding pipe galvanizing machine layout
